Fully Hydraulic Core Drilling Rig
Fully Hydraulic Core Drilling Rig
- Drilling depth: 400-1000m
- Drilling angle: 45-90
- Torque: 3000N.M

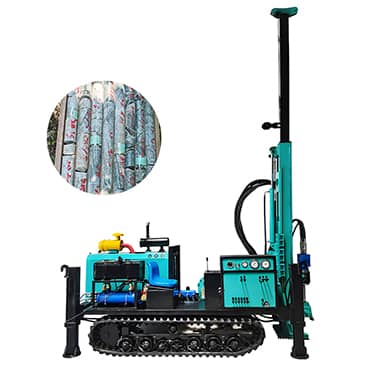

Core Drilling Rig
Core Drilling Rig
- Drilling depth: 200-600m
- Drilling diameter: 75-300mm

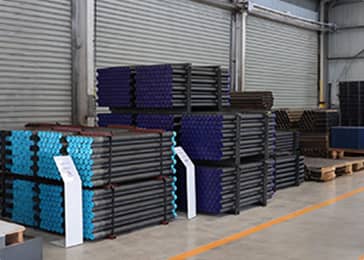

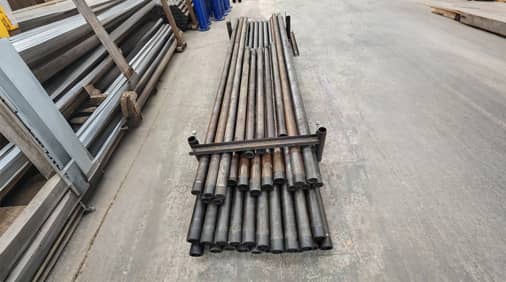

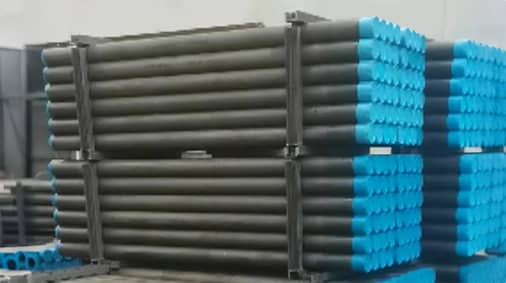

- Drill pipe: Φ50, Φ60

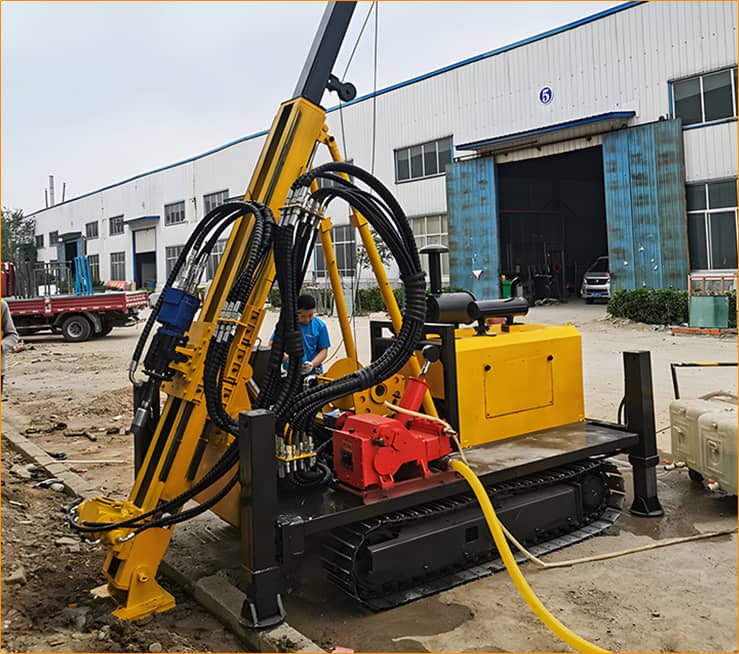

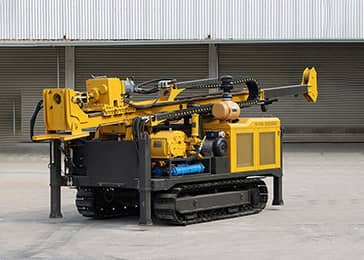

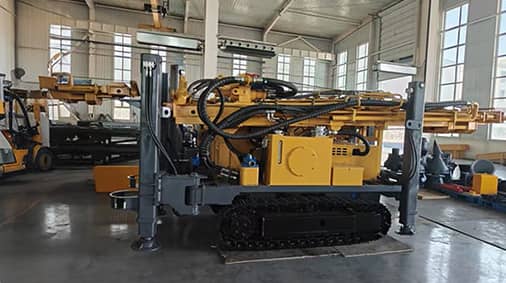

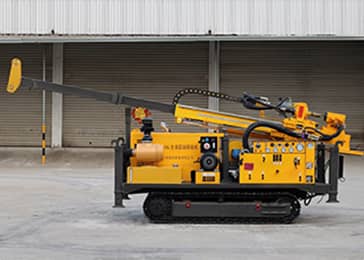

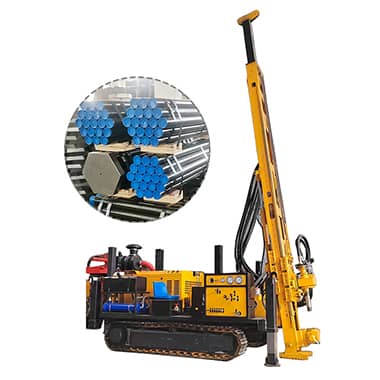

Crawler Core Drilling Rig
Crawler Core Drilling Rig
- Drilling depth: 200-600m
- Opening diameter: 220-325mm
- Drilling angle: 90-75
| Model | YG-400 | YG-600 | YG-800 | YG-1000 |
|---|---|---|---|---|
| Overall weight (T) | 5.3 | 6.7 | 8.1 | 9.2 |
| Drilling diameter (mm) | 60-110 | 60-110 | 60-110 | 60-110 |
| Traveling speed (km/h) | 2.5 | 2.5 | 2.5 | 2.5 |
| Mud pump model | BW90-3 | BW90-3 | BW90-3 | BW160-10 |
| Drill pipe length(m) | 1.5 | 1.5 | 1.5 | 1.5 |
| Lifting force(T) | 10 | 10 | 12 | 14 |
| Dimension (mm) | 4500*1950*2150 | 4600*2000*2350 | 5100*2200*2350 | 5150*2100*2150 |
| Drilling depth (m) | 400 | 600 | 800 | 1000 |
| Climbing ability (max) | 30° | 30° | 30° | 30° |
| Drilling angle(°) | 45°- 90° | 45°- 90° | 45°- 90° | 45°- 90° |
| Main machine power (kw) | 75 | 96 | 118 | 132 |
| Slewing speed (rpm) | 0-1200 | 0-1200 | 0-1200 | 0-1200 |
Centralized Console
The control functions are concentrated on the console, which facilitates operation and saves time and effort.
Crawler Chassis
Wireless remote-controlled crawler chassis adapts to various terrains and enables safe remote rig movement.
Compact Body
The compact body with reasonable design ensures flexibility, durability, and easy operation.

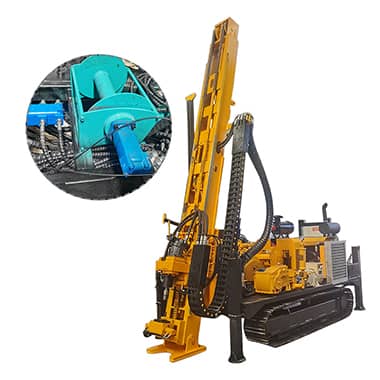

Hydraulic Power Head
Prevent accidental detachment of the rod and provide strong propulsion force.
